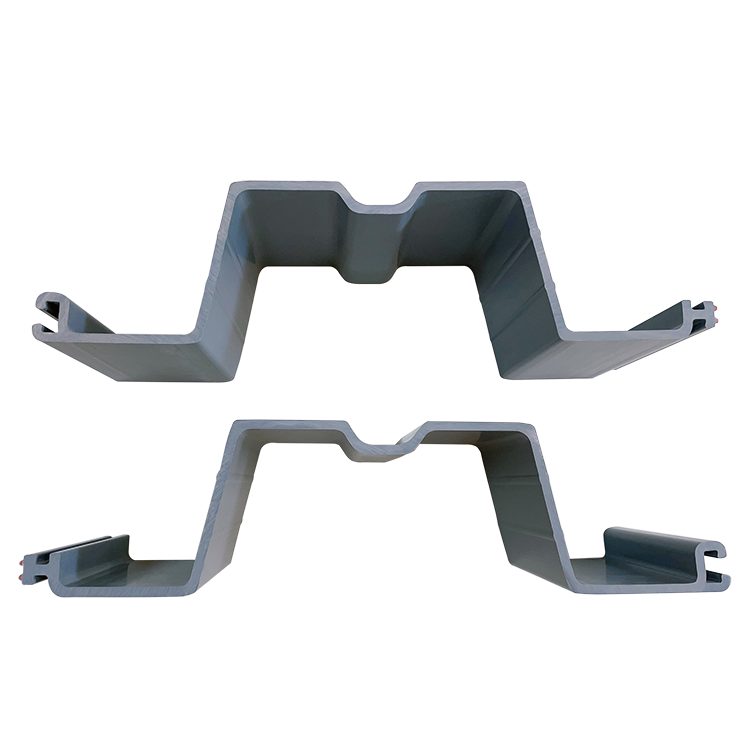

M718
Zhizheng
Product Advantages
50+ year design life
Due to its superior corrosion resistance, Vinyl Sheet Piles can be installed with the confidence of performance even after 50 years.
Cost Efficiency
both from installation and long-term cost savings due to superior corrosion resistance.
Consistent Appearance
Wood fades, paint chips, and steel rusts with time. With Vinyl sheet piles, this problem is virtually eliminated so a lasting, aesthetic finish of vinyl sheet piles can be expected.
UV Resistance
The PVC material can be engineered to be resistant to the harmful ultraviolet rays of the sun.
Not Affected by Marine Borers
Small mollusks or crustaceans in the ocean can cause devastating effects over a period of time to traditional timber piling. Vinyl Sheet Piling offers an attractive alternative that is unaffected by these organisms.
Easy Installation
Vinyl sheet piles do not swell like wood, it is also manufactured with strict dimensional tolerances. Compared to steel sheet piles, vinyl sheet piles can be up to 40 times lighter per square meter making it much easier to handle. Driving can also be completed under certain conditions by pressing down with an excavator or a compact Vibro hammer.
Product Parameters
| Item Number | M718 |
| Material | PVC |
| Width | 718mm |
| Depth | 180mm |
| Length | 3m/6m/10m or customized |
| Thickness | 6mm/7mm/8mm/9mm/10mm |
Performance Index
Test Items | Unit | Detection value |
Hardness | D | 80.1 |
Proportion | g/cm3 | 1.44 |
Vicat softening point | （B50）℃ | 80.8 |
Bending strength | Mpa | 78.21 |
Heat distortion temperature | ℃ | 70.5 |
Low temperature shock | KJ/㎡ | 8.97 |
Tensile Strength | Mpa | 49.33 |
Elongation at break | % | 29.44 |
Notched impact strength of simply supported beams | KJ/㎡ | 24.93 |
Product Application Scenarios
Company Introduction
Zhizheng has a large capacity in material modification, ex-trusion production and injection production, and focus on material modification and product manufacturing of functional polymer materials for specialized application fields.
QMS Certification
SGS Certification
Test Report
SGS Certification
FAQ
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge ,there are delivery cost to be paid by buyer. |
Q: How long is your delivery time? A:General spot products are shipped within 5-7 days, while customized products take 30-45 days according to the required quantity. |
Q: How could you guarantee your products? A: Each piece of products is manufactured by certified workshops, inspected by zhizheng piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality. |
Q: Can we visit your factory? A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case. |
